Ploughshare Batch Mixer

Article-Ploughshare Batch Mixer

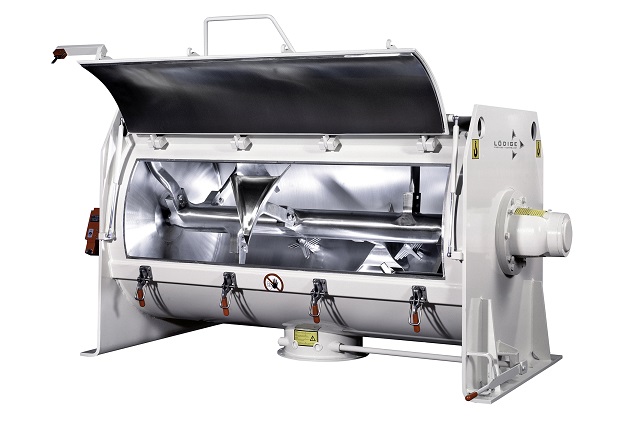

The FKM series Ploughshare batch mixer
The FKM series Ploughshare batch mixer

The FKM series Ploughshare batch mixer can be used whether the material you need to process is powdered, granular, or fibrous. The machine allows excellent mixing results to be achieved in a very short time, with a high level of batch reproducibility. A low-maintenance mixer concept and easy access to the mixer's inner parts guarantee maximum availability.

The Ploughshare mixer uses the mechanically generated fluid bed process developed by Lödige. Special mixing tools are arranged systematically on a shaft to achieve a three-dimensional movement of the mixing material. Thanks to this intensive yet gentle product movement, bulk products can be mixed extremely quickly and evenly.

Depending on the mixing application, various equipment options are available for the mixers of the FKM series. Thus, the mixing performance of the mixing elements can also be supported by separately driven, high-speed rotating chopper heads. These combine with the mixing tools to enable the dispensing of agglomerates, as well as targeted granulation during the process. Further equipment options include a jacked drum and side walls and a hollow shaft for heating or cooling if required. Lödige also offers various options for adding liquids. The optimum solution depends on the application and recipe-specific requirements. It is also possible to prepare products suitable for pumping. In addition, the mixer can be equipped with highly durable surfaces, high-strength structural steels, stainless steels, and special materials.

Depending on the production volume and the application in hand, machine sizes between 130 and 30,000 l are available. Smaller machines with capacities between 5 and 50 l are also available for laboratory applications. Typical mixing times for dry recipes are about 1-3 min. One of the advantages of the Ploughshare mixer is that these mixing times vary little between the various machine sizes. The mixer is fed from above. In smaller, mainly manually operated mixers, this involves a large manual access point. In the case of automated production systems, the raw materials come from upstream silos, scales or similar dosing equipment and arrive in the mixer via one or more pipes. The mixer is discharged from the bottom of the drum.

Gebr. Lödige Maschinenbau GmbH, Paderborn, Germany +49-5251-309-107 www.loedige.de
