New Lab Vee Cone Blender Has Intensifier Bar, Air Brake

Blender is used for laboratory and pilot applications.

Kevin Cronin, Editor-in-Chief

May 22, 2024

1 Min Read
vee cone blender

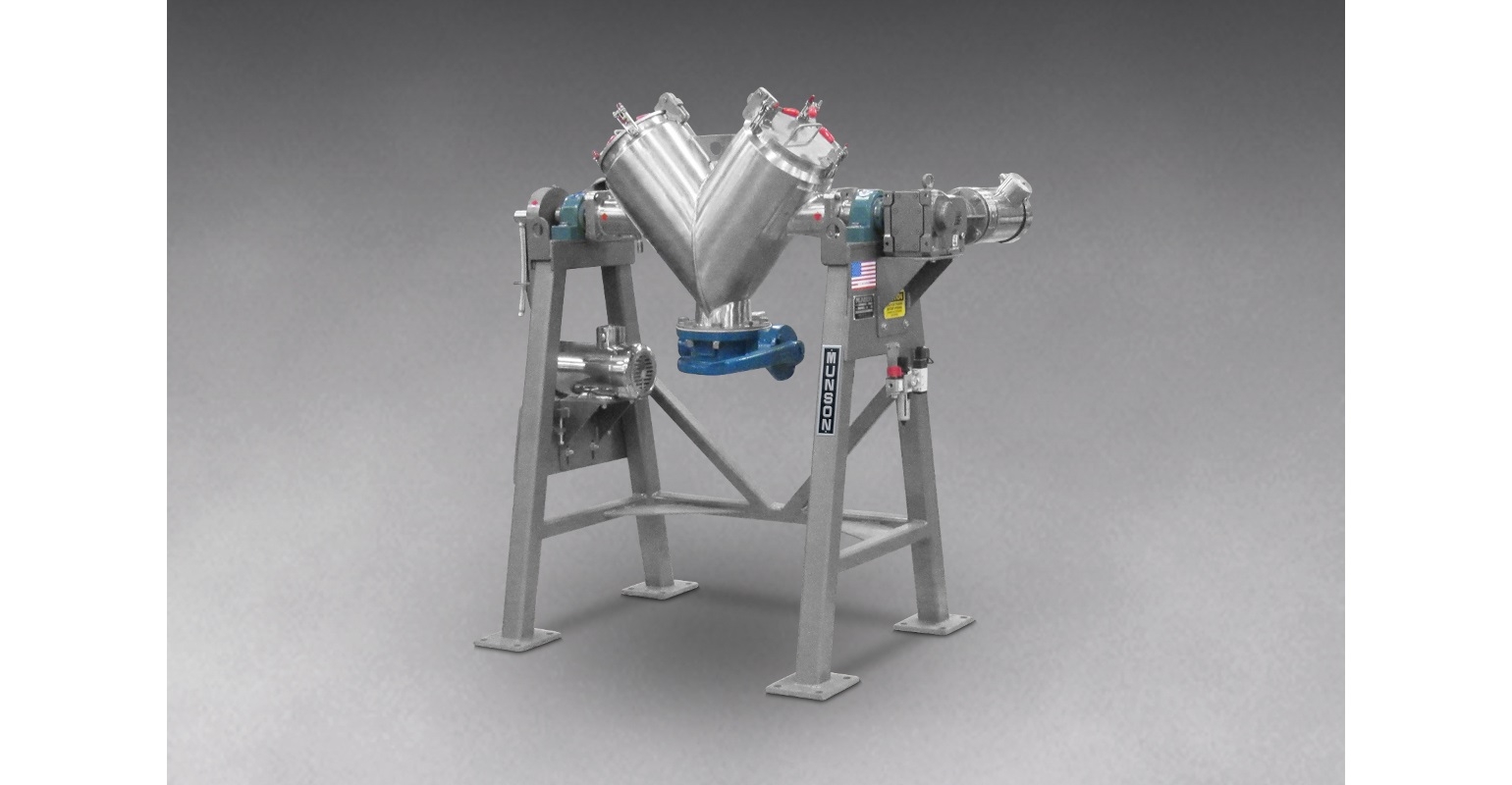

One-cu-ft-capacity vee cone blender model has a swing radius of 21.5 in.Munson Machinery Company, Inc.

A new 1-cu-ft-capacity Model VB-1-SSIS vee cone blender for laboratory and pilot applications features an intensifier bar and air brake.



Constructed and finished to sanitary standards, it is equipped with an internal spray line with intensifier bar for rapid dispersion of liquid additions throughout the batch, and a pneumatically actuated brake to stop rotation for loading or unloading the batch.



Two inclined cylinders with smooth internal surfaces rotate end-over-end, allowing complete discharge through a lever-operated butterfly valve.



The absence of residual material, combined with easy internal access through the cylinder doors and discharge valve, allows rapid sanitizing and visual inspection of all material contact surfaces, preventing cross-contamination between changeovers.



The gentle tumbling action achieves uniform blends more rapidly than standard double cone blenders, typically in 15 to 30 minutes.



Mixing chamber rotation is driven by a ¾-hp stainless steel washdown motor with a shaft-mounted gear reducer, while the intensifier bar is powered by a 1-hp stainless steel wash-down motor.



Munson Machinery Company, Inc., 800-944-6644 Utica, NY www.munsonmachinery.com
