March 8, 2012

1 Min Read
Rotating Laser Measures Flatness, Leveling

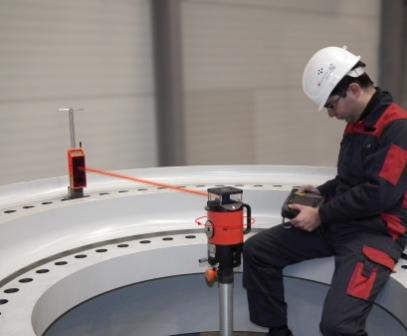

The automatic Levalign Expert rotating laser easily and accurately measures surface flatness, levelness, parallelism, and straightness. It requires a single operator, is wireless, and features 3D color graphics. Levalign Expert provides an accurate and easy to use method for the measurement of flatness and straightness of machine bases and foundations, split machine casings, as well as flatness and parallelism of circular, rectangular, and odd-shaped flanges. The system consists of a self-leveling motorized rotating laser and a sensor that interface wirelessly with a dedicated geometric measurement computer. The surface profile of the measured component is displayed with full color 3-D graphics for better evaluation of the results. Powerful features, such as InfiniSplice, allow for the merging of measurement files and the freedom of repositioning the rotating laser to another location during measurement to overcome obstructions to line-of-sight and measure complex-shaped surfaces. Surface flatness measurement using Levalign is simple and straightforward, with only a single operator needed to measure large vertical and horizontal surfaces
Ludeca Inc., Doral, FL 305-591-8935 www.ludeca.com
