Capacitive Sensor Offers Stainless Steel Housing

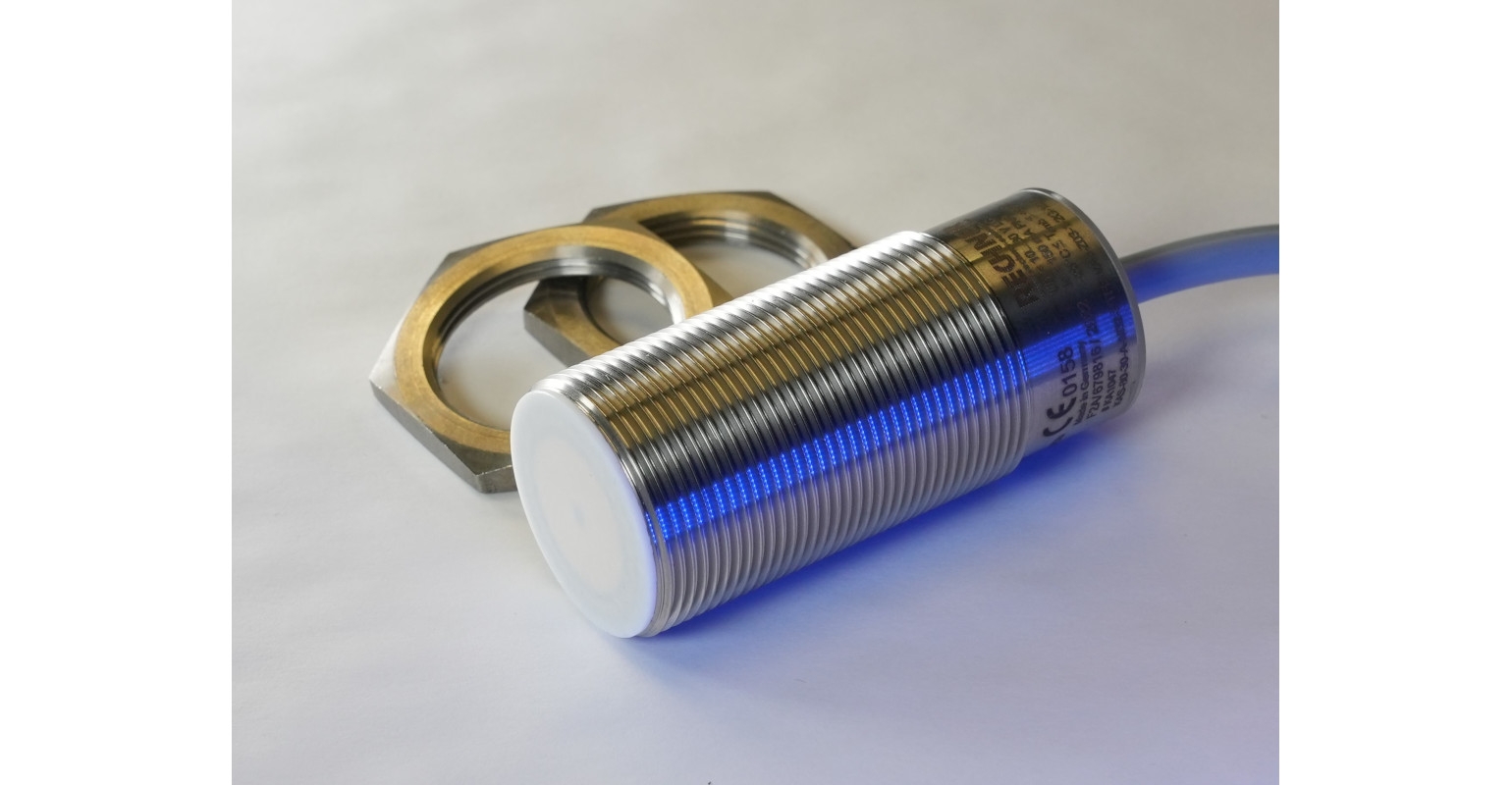

Image courtesy of Rechner Electronics Ind. Inc. Capacitive_Sensor_RECHNER.JPG
The Rechner KA1047 sensor features a stainless steel housing that conforms to the FDA requirements for food contact and chemical applications.
Sensor conforms to the FDA requirements for food contact and chemical applications

Powder Show Booth 2510 - The KA1047 sensor operates on 10-30VDC with a PNP output. The adjustable 2-25mm sensing range comes pre-set at 15mm. This setting works for most applications.

The sensor has both normally open and normally closed outputs. The four-wire cable comes in a 3m length. The stainless steel housing (316L) is rust- and acid-resistant and conforms to the FDA requirements for food contact and chemical applications. The PTFE sensing face also conforms to FDA 21 CFR 177.1550 for food and chemical applications.

The all-in-one design with IECEx and ATEX allows the sensor to be used in Zone 1 (Gas) and/or Zone 20 (dust) applications. The flush-mount M32 design allows for easy installation at a site glass or product detection through the wall of a non-metallic container. This model has the Declaration of Conformity for SIL2 (Safety Integrity Level 2).

Rechner Electronics Ind., Inc., Sanborn, NY 800-544-4106 www.rechner.com
