Huntapac is a leading UK grower and supplier of root crops like carrots and parsnips. Following a reorganization of the business in 2019, the company wanted to develop new value-led product options and so installed a state-of-the-art line to produce carrot powder, with a heat exchanger from HRS Heat Exchangers forming a key part of the new process.
Established near Preston in northern England by William Hunter in 1942, and family-owned for four generations, Huntapac initially grew a range of crops for fruit and vegetable markets in the Northwest, before starting to supply leading supermarkets almost 50 years ago. The company was a major producer of root crops (carrots and parsnips), salads, and brassicas (such as cauliflower and broccoli) until a few years ago, when it decided to rationalize its operations and concentrate solely on the root crops.

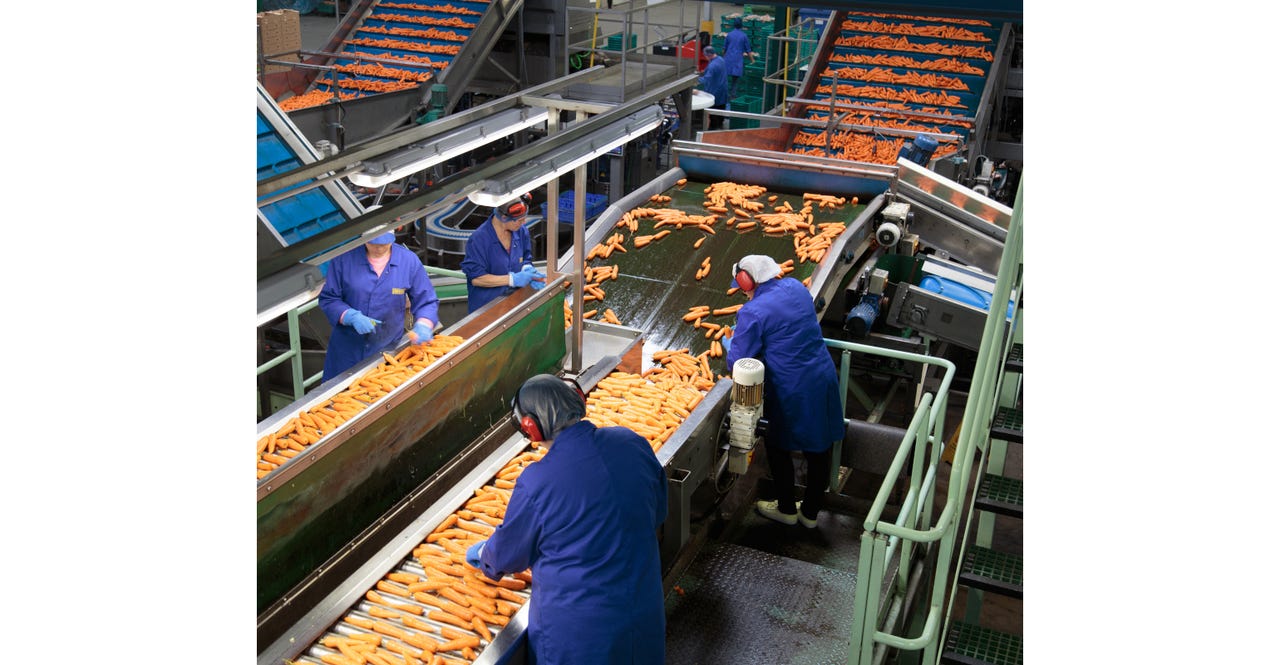

The business grows more than 1,300 hectares of carrots and parsnips across the UK, all of which are taken to the company’s factory at Holmes near Preston for washing and packing. With the increased focus on root crops, the company was keen to add value to the 5% of the crop that is not suitable for its packing customers, and looked at a number of options before deciding on the production of carrot powder.
“Five percent may not sound like a lot, but when you are washing up to 450 tons of carrots a day, it soon adds up,” said Huntapac’s commercial director Steven Kay. “We researched a few methods because there are lots of different drying techniques available, and we felt that the process that was right for use was to puree the carrots, put them over a drying drum, and then mill the flake that results into a powder.”
In early 2020, plans began in earnest for the powder production line. As the first of its kind in the country, this took a lot of consultation between all the parties involved, including equipment suppliers such as HRS Heat Exchangers.
The heat exchanger uses two HRS R Series rotary scraped surface heat exchangers.
The process begins when the carrots are diced and then pureed, after which they are fed into the heat exchanger. This consists of two HRS R Series rotary scraped surface heat exchangers placed in series, which raise the temperature of the carrot puree from 10°C to 60°C. As well as the heat exchangers themselves, HRS supplied two feed hoppers and an HRS BP Series positive displacement pump to feed the puree into the heat exchanger. The heat for the process is supplied from a dedicated steam boiler and the line has a capacity of 500 kg of puree per hour. The warmed puree is then passed over a drying drum where it is dried to create a flaked product which is milled down into the finished powder.
“Pre-heating the puree before the drier performs two main functions,” explained HRS UK sales manager, Andy Ensor. “Warming the puree makes it easier to move through the line as it has less resistance, but the biggest benefit is that it reduces the amount of energy needed to dry the puree making the overall process more efficient.”
Production of carrot powder began in the first half of 2021 and the line now produces about 60kg of dried finished product an hour. The carrot powder is produced under Feed Materials Assurance Scheme (FEMAS) accreditation and is used as an ingredient in animal feed.
“With the tight margins involved in fresh produce, it is important to maximize the value of the crop which has cost you money to grow, and this line allows us to utilize the entire crop,” added Kay. “The line has been designed to be able to handle other crops, but we have initially chosen to focus on carrots and although we have had to make tweaks as you do with any new process, we are now very happy with the quality and of the product that we are producing.”
