NFPA 69-2014 Compliant Passive Explosion Isolation Valve Released

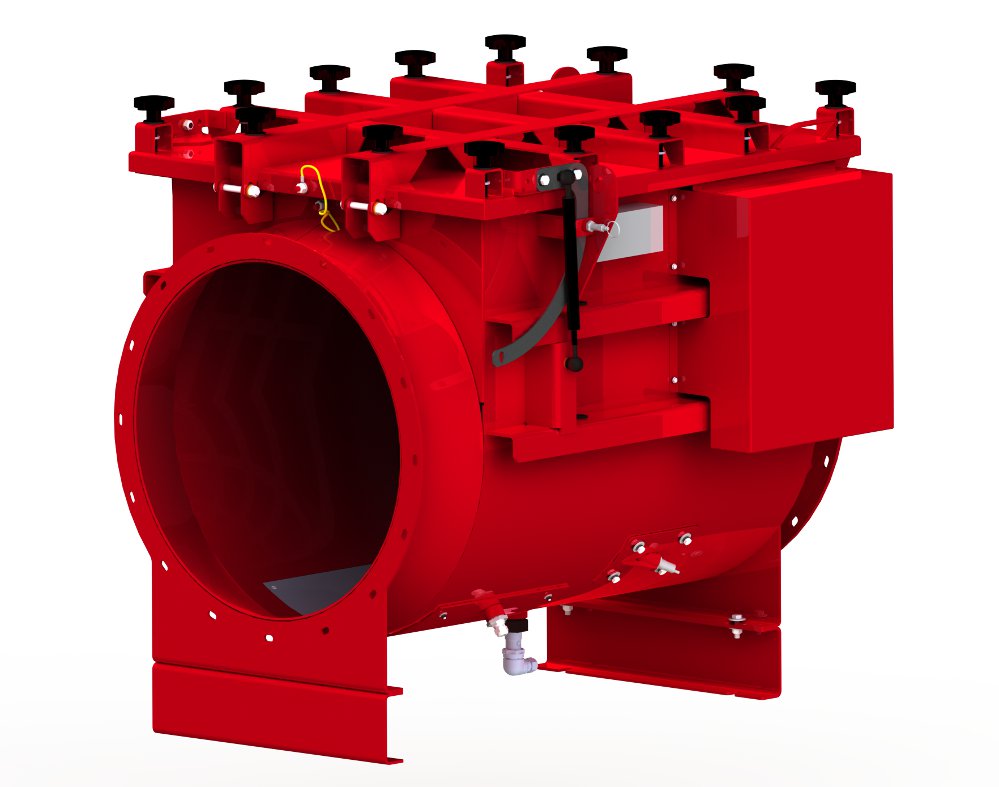

Fenwal-IEP Technologies has released the ProFlapPlusIII passive isolation valve that is fully compliant with the new NFPA 69-2014 dust accumulation monitoring, flap blade-locking, and process shut down requirements. The ProFlapPlusIII is a passive isolation valve that self-closes by the pressure wave created by an explosion inside a vented dust collector and prevents flame propagation to upstream processes. The ProFlapPlusIII is ATEX certified for organic and inorganic dusts with KST values up to 300 bar.m/s for duct sizes ranging from 5 to 12 in. in diameter, and KST values up to 200 bar.m/s for duct sizes ranging from 14 to 40 in. in diameter.
Fenwal-IEP Technologies, Marlborough, MA 855-793-8407 www.IEPTechnologies.com
