New Dust-Free Bag Dump Hopper

December 7, 2015

1 Min Read
New Dust-Free Bag Dump Hopper

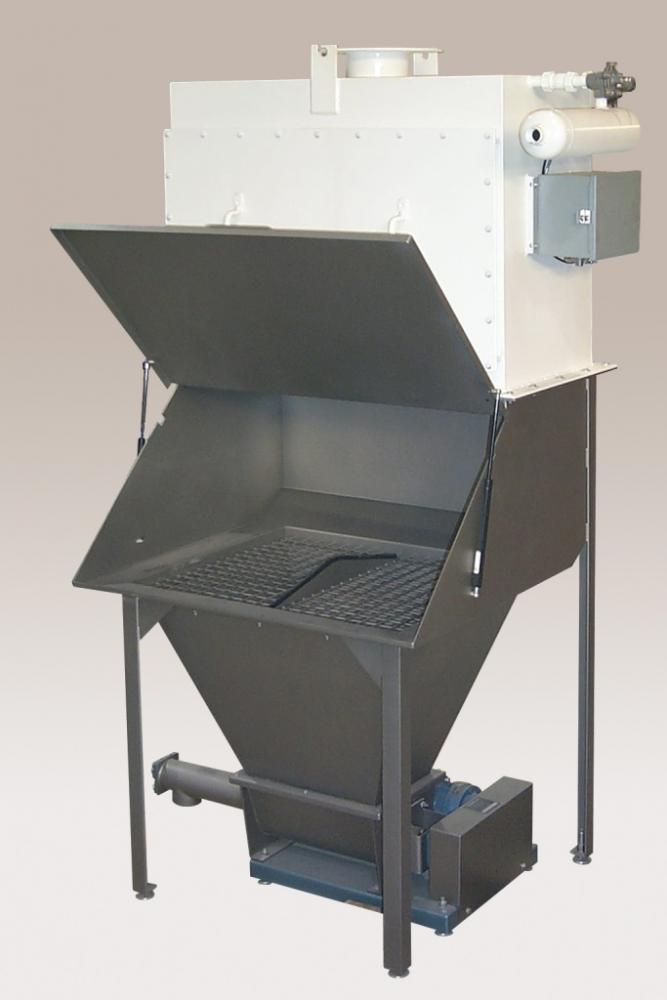

Metalfab Inc.’s new bag dump hopper

Ruggedly built for continuous, long-lasting operation, Metalfab Inc.’s new bag dump hopper incorporates a baffle and bin vent (to attach to a central dust collector) or an optional bin vent filter over the dump area to maintain a dust-free worker environment, while providing a fast and effective means to charge your process.

All metal contact parts are available in a choice of carbon steel or 304 or 316 stainless steel. On carbon steel units, the dump hopper section will be prime painted inside and outside, and finished with a blue enamel coat on the exterior. All stainless steel units have a 2B mill finish with the dump hopper legs also in stainless steel.

Other standard features include a lift assist hinged door to keep foreign materials from falling into the process material when not in use; an expanded metal grid to prevent bag pieces from getting into the process and hopper. Available options include a bin vent filter, internal bag knife, extended legs, and explosion proof requirements.

Metalfab Inc., Vernon, NJ 800-764-2999 www.metalfabinc.com
