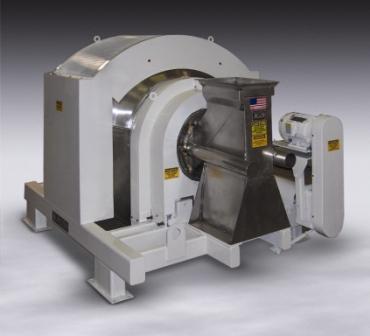

Rotary Batch Dryer-Dehumidifier-Cooler

This rotary batch dryer-dehumidifier can be configured to dry, dehumidify, or cool material directly by introducing heated or cooled air into the batch, or indirectly via a jacketed vessel to heat or cool the batch, minimizing exposure to plant air. Nitrogen-purged systems eliminate exposure to the atmosphere. Four-way mixing action folds, tumbles, cuts, and turns the material, exposing a maximum number of particles to the conditioned air circulating through the vessel, or to the heated or chilled walls of the jacketed mixing vessel, while directing material into the discharge spout for complete evacuation. The unit can also blend ingredients in parts as small as one per million with complete uniformity in less than three minutes. Available in useable capacities from 10 to 600 cu ft, it is equally effective in blending of batches from 100 down to 5 percent of capacity.
Munson Machinery Company, Inc., Utica, NY 800-944-6644 www.munsonmachinery.com
