Gas-Heated 350°F Floor-Level Cabinet Oven

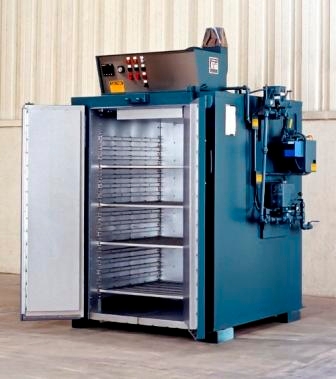

No. 900 is a gas-heated 350°F, floor-level cabinet oven, currently used for drying polycarbonate plastics. One hundred thousand BTU/HR is installed in a modulating natural gas burner, and workspace dimensions are 36 in. wide x 36 in. deep x 60 in. high. The oven has 4-in. insulated walls, and a 750 CFM, 3/4-hp recirculating blower provides vertical airflow to the oven. Safety equipment, such as a 325-CFM, 1/3-hp force exhauster, is included as required by IRI, FM, and the National Fire Protection Association Standard 86 for gas-heated equipment. The oven also features shelf supports on 3-in. vertical centers that are rated 200 lb. per level for a 1000-lb maximum oven load. Controls onboard No. 900 include a recirculating blower airflow safety switch, digital indicating temperature controller, and a manual reset excess temperature controller with separate contactors.
The Grieve Corp., Round Lake, IL 847-546-8225
