Electrically-Heated 750ºF Walk-in Oven

March 17, 2015

1 Min Read
Electrically-Heated 750ºF Walk-in Oven
click here to view full image

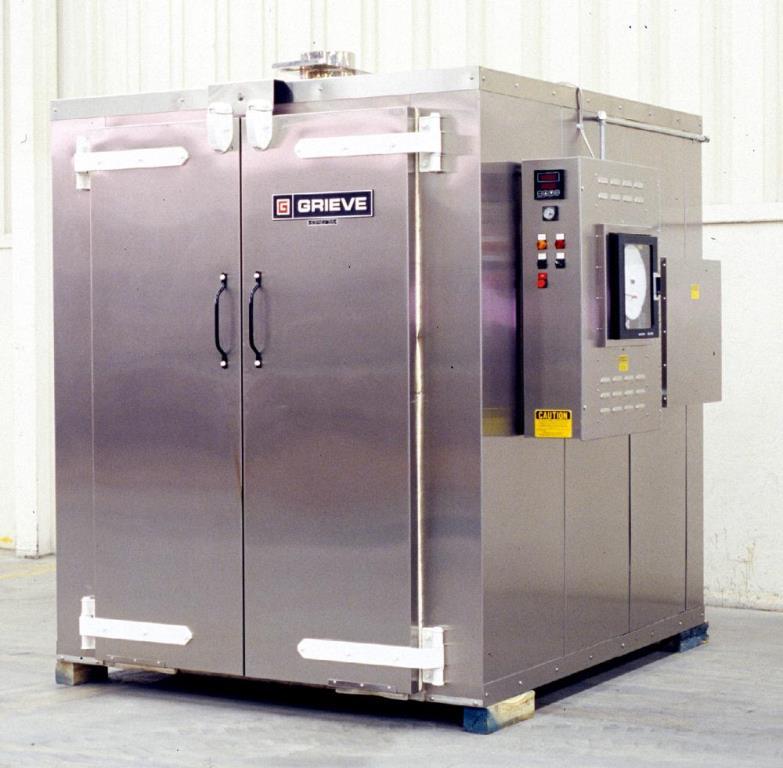

No. 941 is an electrically-heated 750ºF walk-in oven currently used for drying resin mixtures at a customer’s facility. Workspace dimensions on this oven measure 48 in. wide x 48 in. deep x 72 in. high. Sixty KW are installed in Incoloy-sheathed tubular elements to heat the unit, while a 4200 CFM, 3-hp recirculating blower provides horizontal airflow across the load.

This Grieve walk-in oven features 6-in. insulated walls throughout, a Type 304 2B stainless steel interior with continuously welded seams, a stainless steel exterior with #4 brushed finish, and heavy-duty double front doors.

No. 941 also features a digital programming temperature controller and 10-in.-diam circular chart recorder onboard.

The Grieve Corp., Round Lake, IL 847-546-8225 www.grievecorp.com
